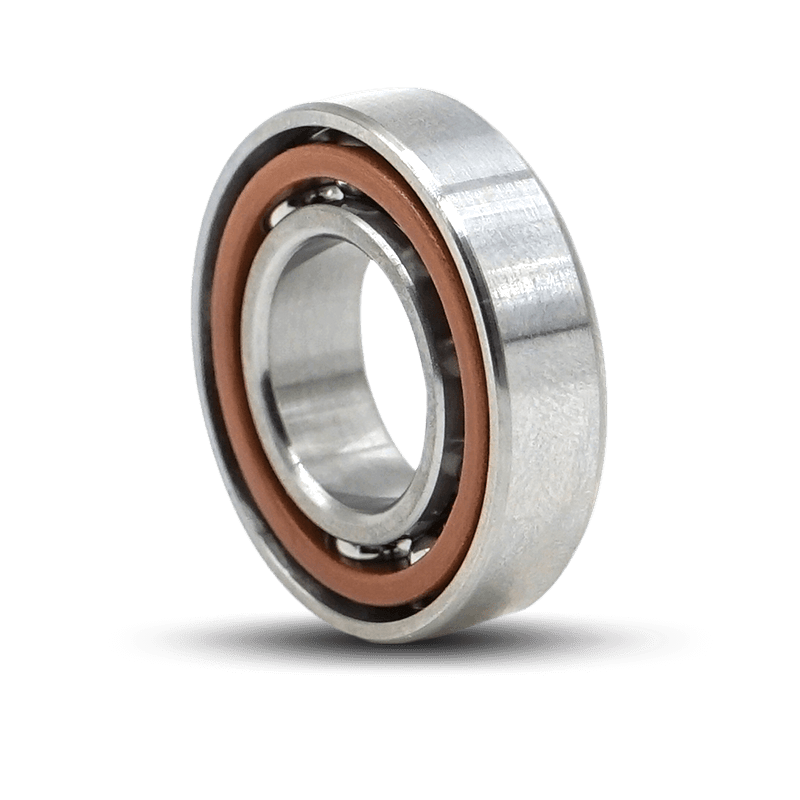

B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens OEM Home / Productum / Angularis contactus pila adferentem seriem / Tenues sectionem angularis contactus pila gestus / B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens

  • B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens
  • B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens
  • B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens
B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens

B71901-C-T-P4 12*24*6mm machina unius ordinis fusi globulus tenuis sectionis angularis contactus pilae gestus ferens

Contactusus nunc Rogare consultationem

Producta ab Huaxing Group producta late in variis agris sunt. Placet sentire liberum contactus nos si quid afferentem requisita habes!

Technical data

Intus (mm);

12

Extra (mm);

24

Latitudo (mm);

6

Intus tolerantia (mm);

0/-0,004

Tolerantia foris (mm);

0/-0,005

Tolerantia latitudinis (mm);

0/-0,08

Ad tolerantiam stipiti da- (mm) ;

0,18/-0,18

Contactus angulus:

15°

Ordo globuli:

uno ordine

Sigillum:

non-signatus

Materia anulus:

GCr15, 100Cr6, SUJ2

Elementum Rolling Material:

ferro globos

Materia cavea:

Resinae Phenolic

Tolerantia Classis:

P4S

Lubricatio:

non-uncta

Genus lubricationis:

uncto

Productum pondus:

0,011 kg

Features

· apta est ad altas radiales et axiales onera in unam partem

· habet etiam axialem onus facultatem gerendi utrinque in X- vel O-paratione in paria

  • · levis series cum parva sectione transversali et humili spatio postulationem

· accurate gradus: P4S (majores, saltem secundum ISO-tolerantia classis IV)

· omnes cursus tolerances distinguuntur secundum ISO-tolerantiae classis II

· ordinatur ad altam currendam subtilitatem et celeritatem maximam cum rigore et salute perficiendis

· sigillum: aperto consilio (sine sigillo)

· E xchange : 71901CTA/P4S, 71901C (NSK), 71901CD/P4A (SKF)

Applicationem : apparatus tools

Typ e

Shaft
-Ø
in mm *

Dimensiones in mm

c*ontactus angulus

Pondus
(kg)

D

B

c

Da

da

r (min)

r1 (min)

ra (max)

ra1(max)

B71900-C-T-P4S-UL

10

22

6

5.1

19

13

0.3

0.1

0.3

0.1

15°33333333

0.01

B71901-C-T-P4S-UL

12

24

6

5.4

21

15

0.3

0.1

0.3

0.1

15°

0.011

B71902-C-T-P4S-UL

15

28

7

6.4

25

18

0.3

0.1

0.3

0.1

15°

0.016

B71903-C-T-P4S-UL

17

30

7

6.6

27

20

0.3

0.1

0.3

0.1

15°

0.018

B71904-C-T-P4S-UL

20

37

9

8.3

33.5

23.5

0.3

0.15

0.3

0.15

15°

0.037

B71905-C-T-P4S-UL

25

42

9

9

38.5

28.5

0.3

0.15

0.3

0.15

15°

0.043

B71906-C-T-P4S-UL

30

47

9

9.7

43

34

0.6

0.3

0.3

0.3

15°

0.05

B71907-C-T-P4S-UL

35

55

10

11

50.5

39.5

0.6

0.15

0.6

0.15

15°

0.077

B71908-C-T-P4S-UL

40

62

12

12.8

57.5

44.5

0.6

0.6

0.6

0.6

15°

0.11

B71909-C-T-P4S-UL

45

68

12

13.6

63

50

0.6

0.6

0.6

0.6

15°

0.13

B71910-C-T-P4S-UL

50

72

12

14.2

67

55

0.6

0.3

0.6

0.3

15°

0.154

B71911-C-T-P4S-UL

55

80

13

15.5

74

61

1

0.6

0.6

0.6

15°

0.175

B71912-C-T-P4S-UL

60

85

13

16.2

79

66

1

0.6

0.6

0.6

15°

0.188

B71913-C-T-P4S-UL

65

90

13

16.9

85.5

70

1

0.3

0.6

0.3

15°

0.2

B71914-C-T-P4S-UL

70

100

16

19.4

94.5

76

1

0.6

0.6

0.6

15°

0.34

B71915-C-T-P4S-UL

75

105

16

20.1

99.5

81

1

0.6

0.6

0.6

15°

0.359

B71916-C-T-P4S-UL

80

110

16

20.7

104

86

1

0.3

0.6

0.3

15°

0.376

B71917-C-T-P4S-UL

85

120

18

22.7

114

92

1.1

0.6

0.6

0.6

15°

0.533

B71918-C-T-P4S-UL

90

125

18

23.4

119

97

1.1

0.6

0.6

0.6

15°

0.559
