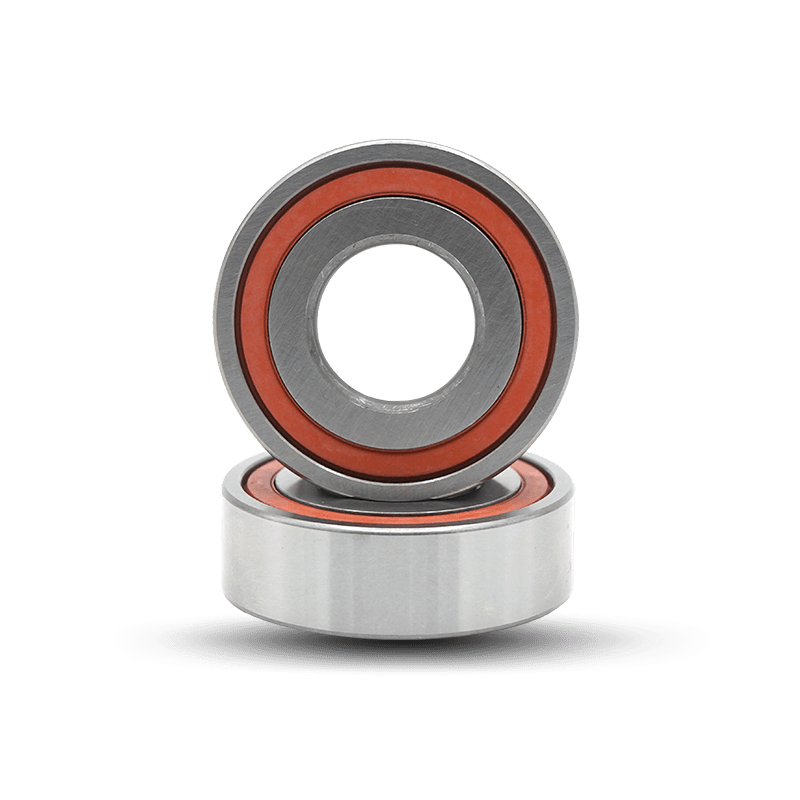

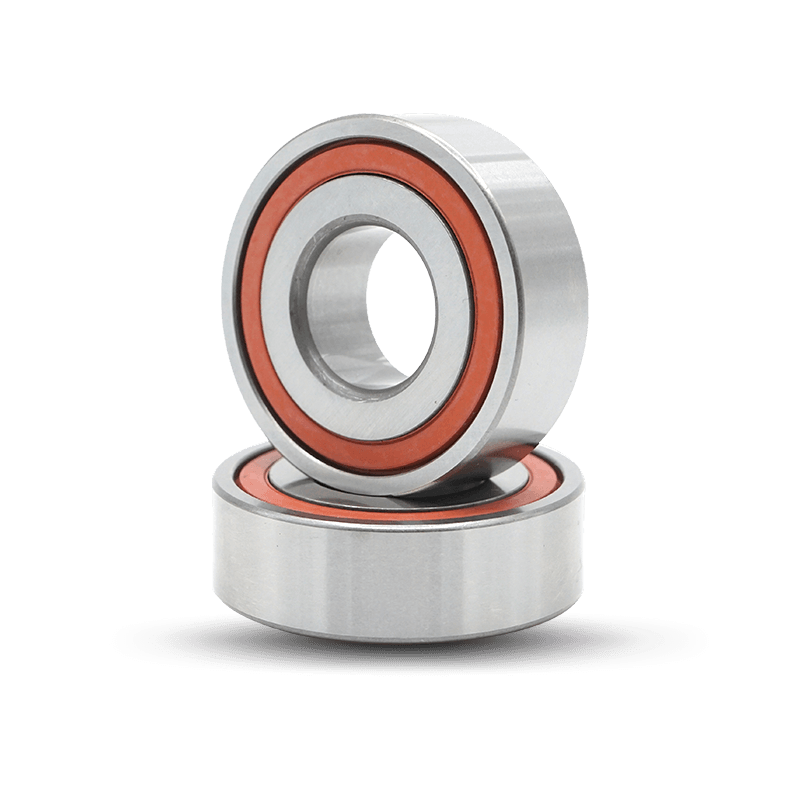

BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus OEM Home / Productum / Angularis contactus pila adferentem seriem / Ball cochlea firmamentum gestus-fictus angularis contactus pila gestus / BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus

  • BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus
  • BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus
  • BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus
BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus

BSB020047-2RS-T-P4-DB 20*47*15mm Ball cochleae gestus globulus contactus globulus gestus

Contactusus nunc Rogare consultationem

Producta ab Huaxing Group producta late in variis agris sunt. Placet sentire liberum contactus nos si quid afferentem requisita habes!

De hoc item

· Dimensiones: 20 x** 47 x 15mm

· Flexilis sigillum utrinque

· C% Chrome Steel ad altiorem onus et certa machinatione

· subsidia 5,6 00 rpm adipe

· Noster summus qualis portatio facta est ad reducendum tuum frequentiam et sustentationem sumptus

Formularium hoc item

Ferens Type: Mitte pila contactus angularis afferentem . 60 °） - Screw pila supportantes

Notam: HXB vel OEM notam

Materia: Chrome chalybe annulos et chalybeis globos

Pars No.: BSB020047-T-2RS, BSD2047C, 20TAC47B, BS20M47.2RSZ.P4.UL,

Clearance: C0

Vibratio: ZV2, ZV3

Subtilitas Classis: P5, P4, ABEC-5, ABEC-7

Ordinatio: DB/DT/DF/SU/TFT/TBT/QBC/QBT

Application: cochlea support

Magnitud*o mensa unitatis: mm
Ferens numerum max Dimensiones terminus Limitandi celeritas Load rating(KN) pre onus fictio
m≈kg d D B Cr Cor uncto MAX axil onus ( KN ) ( N.mm )
760201-TN 0.042 12 32 10 11.6 12.5 17000 5.2 1.4 15
760202-TN 0.052 15 35 11 12.5 15 15000 6.3 1.4 20
760203-TN 0.075 17 40 12 16.6 20 13000 8.5 1.7 30
760204-TN 0.13 20 47 14 19.3 25 12000 10.6 2.3 50
760205-TN 0.16 25 52 15 22 30.5 11000 13.2 2.5 65
760206-TN 0.24 30 62 16 26 39 9000 17.0 2.9 85
760207-TN 0.34 35 72 17 30 50 8000 21.2 3.3 115
760208 TN 0.44 40 80 18 37.5 64 7000 28.0 4.3 170
760209-TN 0.50 45 85 19 38 68 6700 28.0 4.5 190
760210-TN 0.57 50 90 20 39 75 6300 31.5 4.6 230
760211-TN 0.75 55 100 21 40.5 81.5 6000 33.5 4.9 250
760212-TN 0.96 60 110 22 56 112 5000 47.5 6.5 350
760213-TN 1.20 65 120 23 57 122 4800 50.0 7.0 410
760214-TN 1.32 70 125 24 65.5 137 4500 56.0 7.0 440
760304-TN 0.17 20 52 15 24.5 32 11000 14.0 2.9 60
760305-TN 0.28 2 62 17 28.5 41.5 9000 18.0 3.3 85
760306-TN 0.41 30 72 19 34.5 55 8000 23.6 4.3 130
760307-TN 0.55 35 80 21 36.5 61 7000 26.5 4.8 170
760308-TN 0.81 40 90 23 50 83 6300 35.5 5.6 225
760309-TN 1.02 45 100 25 58.5 104 5600 45.0 7.0 300
760310-TN 1.41 50 110 27 69.5 127 5000 53.0 7.6 360
1.69 55 120 29 78 146 4800 63.0 8.8 460
2.12 60 130 31 88166 166 4500 75.0 10.0 540
2.60 65 140 33 100196 196 4000 90.0 12.0 700
760314-TN 3.16 70 150 35 110220 220 3800 95.0 14.5 760
BS1547 0.13 15 47 15 21.527 27 12000 11.5 2.6 50
BS1747 0.14 17 47 15 21.527 27 12000 11.5 2.6 50
BS2047 0.13 20 47 15 19.325 25 12000 10.6 2.3 50
BS2562 0.24 25 62 15 28.5415 41.5 9000 18.0 3.3 85
BS3062 0.23 30 62 15 2639 39 9000 17.0 2.9 85
BS3072 0.35 30 72 15 3154 54 8000 22.0 3.4 115
BS3575 0.30 35 72 15 3050 50 8000 21.2 3.3 115
BS4072 0.26 40 72 15 2849 49 8000 21.2 2.9 115
BS4090 0.65 40 90 20 5083 83 6300 35.5 5.6 225
BS4575 0.26 45 75 15 28.552 52 7500 22.4 3.1 130
BS45100 0.81 45 100 20 58.8104 104 5600 45.0 6.9 300
BS50100 0.75 50 100 20 58.5104 104 5600 45.0 7.0 330
BS5590 0.38 55 90 15 32.565.5 65.5 6300 28.0 3.6 190
BS55100 0.75 55 100 20 40.581.5 81.5 6000 33.5 4.6 250
BS55120 1.18 55 120 20 60116 116 5000 50.0 6.8 360
BS60120 1.11 60 120 20 61120 120 4800 53.0 7.0 380

Summus praecisio armorum qualitatem et fidem producti fabricandi praestat

Hangzhou Huaxing Kechuang tenentes Group Co., Ltd.

Hangzhou Huaxing Kechuang Tenens Group Co, Ltd firmatum in Martio MCMXCV. Currently, sunt Hangzhou Huaxing ferens Co, Ltd, Hangzhou Yijia Subtilitas ferens Co, Ltd, Zhejiang Aiken Machinery Co, Ltd, Zhejiang Aijing Machinery Technologia Co, Ltd., et Hangzhou Aibesi ferens Co, Ltd., Huaxing ferens Technologiam (Changxing) Co, Ltd VI societates et II paradisi industriales. Nos sumus professio et societas. Coetus totam aream comprehendit 66,800 metrorum quadratorum, cum tota constructione meditata area 130,000 metrorum quadratorum et area aedificata 70,000 metrorum quadratorum. Tres e sex societatibus identitatem conatibus summus technicorum in locis praecipuis rei publicae sustentatis transierunt, et duas provincias gradus summus tech R&D centra habent. Centrum R&D sodalitatis plus quam 80 personas investigationis scientificae habet inter doctores, dominos, et industriam fabrum seniorum. Turma R&D fortis est. Investigationis et progressionis scientiae nationalis et technologiae incepta et nationalis defensionis militaris incepta multis temporibus valida participavit. Anno 2020, Yijia Subtilitas iniit Societas Aerospace Scientiae et Technologiae et systema procurationis AVIC Group.

Company Quisque

Transierunt IS09001: 2000 ratio administrationis qualitas et ISO/TSl6949: 2002 qualitas administrationis ratio certificationis.

Factory

Tardus News

Nobis loquere

Si opus est, pete nos!

Fortem R&D equos habemus, et nos enucleare et producere fructus secundum delineationes vel exempla clientium oblatorum possumus.
